Professional Lighting

.


Products of TM “TIMELINE” – professionally developed equipment for modern and high-quality lighting.
LED technologies have the highest level of efficiency. Due to the reliability, compactness, quality of light flux, they have become widespread in all areas where artificial lighting is used.

  • Models with a matte surface and a warm white emission color give a soft, diffused light.
    Cold color ceiling LED panels are ideal for lighting of public and industrial areas such as cafes, canteens, shopping malls, shops, sports clubs and more.

LED panel

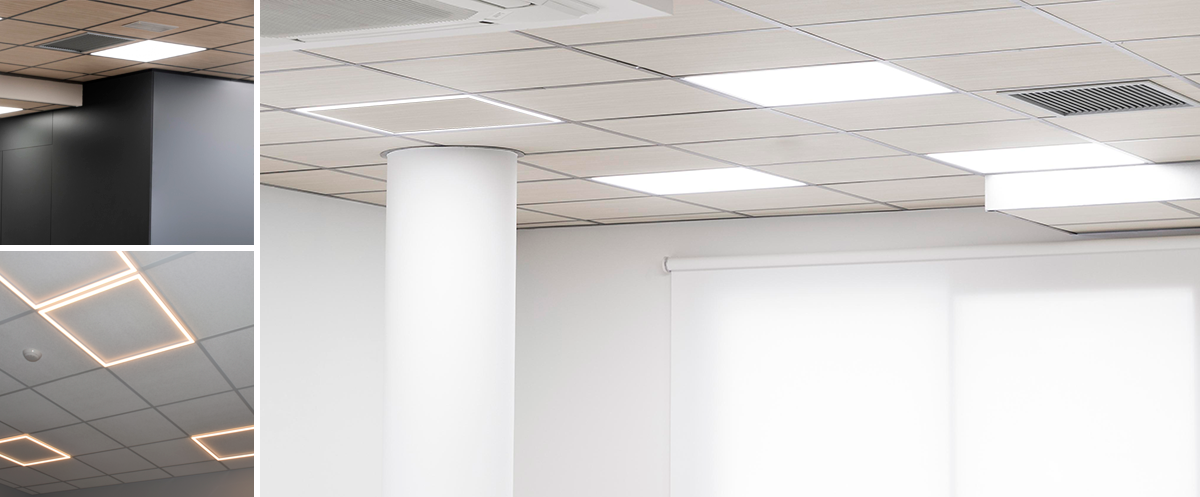

LED panels – a type of LED lamps. Widely used for lighting of office, commercial and public spaces. Recommended for buildings without natural light.

Benefits:

  • Effect of sunlight – pleasant daylight at any time of day;
  • Color temperature – the ability to choose the shade of light, depending on preferences or features of interior;
  • Stable operation – without flicker, voltage drops and overheating;
  • Cost-effectiveness – reduction of electricity costs by up to 50%;
  • Easy installation;
  • Safety – do not contain hazardous or harmful substances, do not require special conditions for storage or transportation;
  • Long-term operation.

LED Standart Panel

General characteristics:
  • Lighting efficiency - 85lm/w
  • Functional - 1-10V
  • Degree of protection - IP54
  • Accommodation - indoors
  • Light source - SMD4014
  • Colours and their range are available as standard - 3000K / 3500K / 4000K / 4500K / 5000K / 6000K / 6500K


Size
Power
Ra
PF
Voltage
IK
600x600
36W
>80
>0.9
AC85 ~ 265V
IK04
600x600
40W
>80
>0.9
AC85 ~ 265V
IK04
600x600
42W
>80
>0.9
AC85 ~ 265V
IK04
300x300
24W
>80
>0.9
AC85 ~ 265V
IK04
300x600
30W
>80
>0.9
AC85 ~ 265V
IK04
300x1200
48W
>80
>0.9
AC85 ~ 265V
IK04
600x1200
72W
>80
>0.9
AC85 ~ 265V
IK04

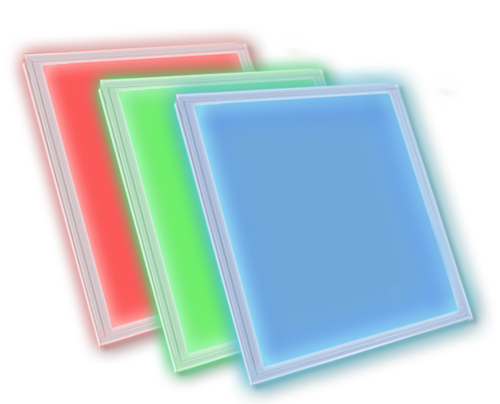

LED panel Standart Panel RGB

LED Standart Panel RGB

General characteristics:
  • Lighting efficiency - 90 lm/w
  • Light source - SMD2835
  • Degree of protection - IP54
  • Accommodation - indoors
  • Colours and their range are available as standard - RGB
Size
Power
Ra
PF
Voltage
IK
600x600
24W
>80
>0.5
AC100 ~ 240V
IK04

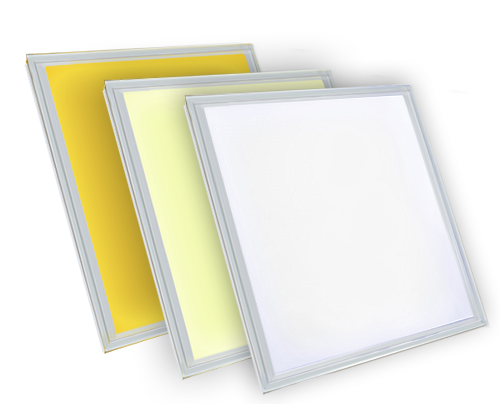

LED panel Standart Panel 3-4.5-6

LED Standart Panel 3-4.5-6

General characteristics:
  • Lighting efficiency - 100 lm/w
  • Functional - 1-10V
  • Degree of protection - IP54
  • Accommodation - indoors
  • Light source - SMD2835
  • Colours and their range are available as standard - 3000K - 4000K - 6000K
Size
Power
Ra
PF
Voltage
IK
600x600
36W
>80
>0.5
AC100 ~ 265V
IK04

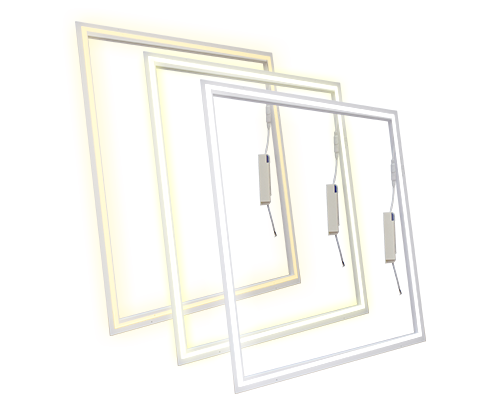

LED Frame

LED Frame

General characteristics:
  • Functional - 1-10V
  • Degree of protection - IP54
  • Accommodation - indoors
  • IK - IK04
  • Light source - SMD2835
  • Colours and their range are available as standard - 3000K / 4500K / 6000K
Size
Power
Ra
PF
Voltage
Lighting efficiency
600x600
36W
>80
>0.9
AC85 ~ 265V
100 lm/w
600x600
40W
>80
>0.9
AC85 ~ 265V
100 lm/w
600x600
42W
>80
>0.9
AC220 ~ 240V
110 lm/w
600x600
48W
>80
>0.9
AC85 ~ 265V
100 lm/w
300x300
24W
>80
>0.5
AC85 ~ 265V
100 lm/w
300x600
30W
>80
>0.5
AC85 ~ 265V
100 lm/w
300x1200
48W
>80
>0.5
AC85 ~ 265V
100 lm/w
600x1200
72W
>80
>0.9
AC85 ~ 265V
100 lm/w

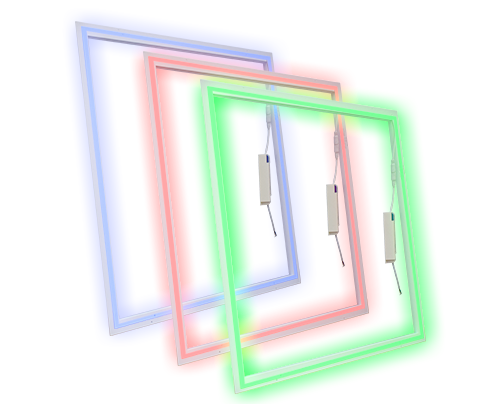

LED Frame Panel RGB

LED Frame Panel RGB

General characteristics:
  • Lighting efficiency - 90 lm/w
  • Light source - SMD2835
  • Degree of protection - IP54
  • Accommodation - indoors
  • Colours and their range are available as standard - RGB
Size
Power
Ra
PF
Voltage
IK
600x600
24W
>80
>0.5
AC100 ~ 240V
IK04

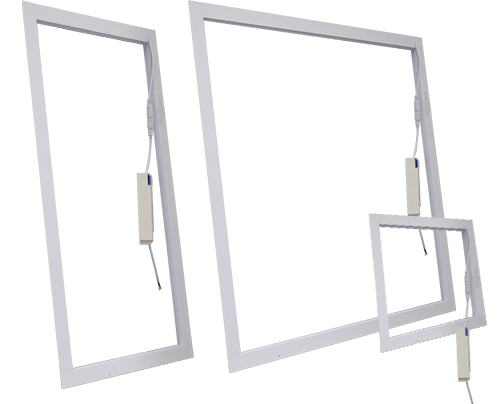

LED Frame

LED Frame Panel 3-4.5-6

General characteristics:
  • Lighting efficiency - 100lm/w
  • Degree of protection - IP54
  • Accommodation - indoors
  • Light source - SMD2835
  • Colours and their range are available as standard - 3000K - 4000K - 6000K
Size
Power
Ra
PF
Voltage
IK
600x600
36W
>80
>0.5
AC100 ~ 265V
IK04

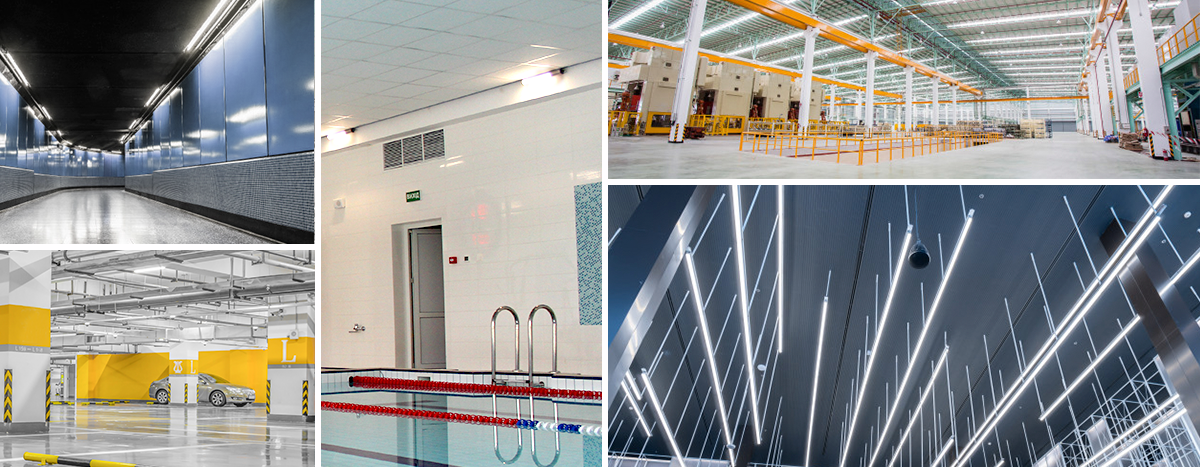

Industrial LED lamps

Industrial LED lamps

Properly selected luminaires for industrial premises are able to ensure the safety of personnel, comfortable working conditions and minimize energy consumption.

Benefits:

  • Cost-effectiveness.
  • Durability.
  • Stable operation – without flicker, voltage drops and frequent overheating
  • High degree of protection (IP65 and above).
  • No stroboscopic effect (turn on instantly and do not pulsate).
  • Safety – do not contain hazardous or harmful substances, do not require special conditions for storage or transportation.
  • Uniform lighting without shadow areas.

Industrial LED lamps

General characteristics:
  • Lighting efficiency - 100-110lm/w
  • Voltage - AC100 ~ 240V
  • Power - 36W
  • Accommodation - outdoors
  • Colours and their range are available as standard - 3000K / 4500K / 6500K
Size
Ra
PF
Functional
IP
IK
Industrial Store Econome
1200x74x64mm
82
>0.95
IP65
IK08
1200x74x64mm
82
>0.95
1-10V
IP65
IK08
1200x74x64mm
82
>0.95
Radar
IP65
IK08
1200x74x64mm
82
>0.95
1-10V ; Radar
IP65
IK08
Industrial Premium
1200x91x75mm
82
>0.95
IP66
IK10
1200x91x75mm
82
>0.95
1-10V
IP66
IK10
1200x91x75mm
82
>0.95
Radar
IP66
IK10
1200x91x75mm
82
>0.95
1-10V ; Radar
IP66
IK10
Industrial Premium Emergency
1200x91x75mm
82
>0.95
Emergency
IP66
IK10
1200x91x75mm
82
>0.95
1-10V, Emergency
IP66
IK10
1200x91x75mm
82
>0.95
Radar, Emergency
IP66
IK10
1200x91x75mm
82
>0.95
1-10V ; Radar ; Emergency
IP66
IK10
