Clock synchronization systems

.

Clock synchronization systems.

The single time system guarantees accurate and uniform time on all clocks of the enterprise, office, hotel, educational institution, etc., due to their synchronization with the central time controller of the institution. Used in both indoor and outdoor (street) stationary systems of real-time display.

You can connect additional functionality to the system: calls at schools and universities, advertising and information alerts, launching various processes.

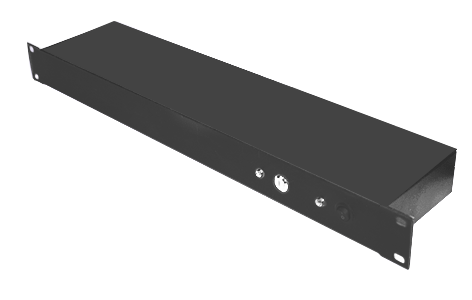

Clock station – a control device in the system of automatic time display. Provides synchronization of all clocks (digital and mechanical) on the RS-485 bus with internal time, or an external NTP server or GPS.

Годинникова станція
  • Ability to flexibly adjust parameters to customer needs.
  • Setting is done via the station’s web interface
  • In addition, the station has a function to update the firmware of connected clocks.

It is made in the standard 1U case with a possibility of installation in a server cabinet 19´´. For operation of mechanical (hand) clocks, it is in addition equipped with a current source with 12 volts. Clock stations can be stacked to allow more clocks to work.

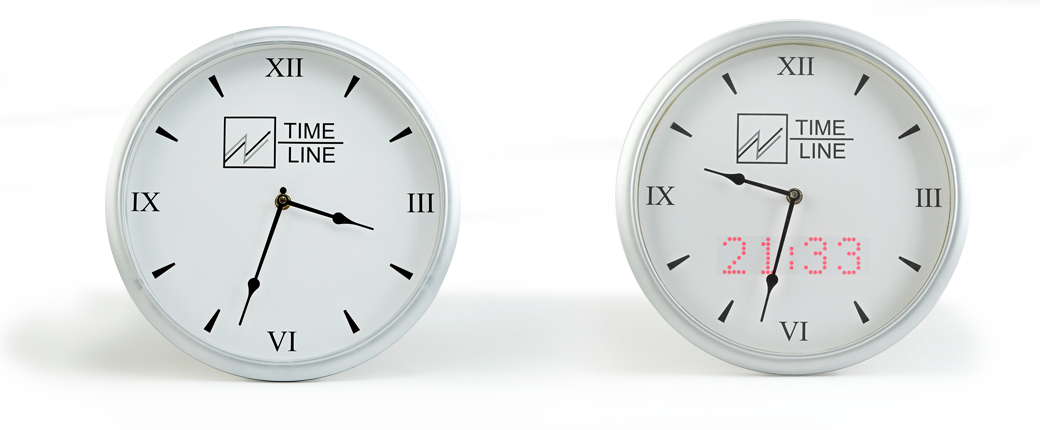

Mechanical Clocks

Usage:
  • corridors of office and educational premises, rooms, hotel lobby and conference halls, meeting rooms, halls, large offices.
Name
Standard sizes
Mechanical clocks
D=300, 400, 450 мм
Clocks mechanical of hotel type
D=300, 400, 450 мм

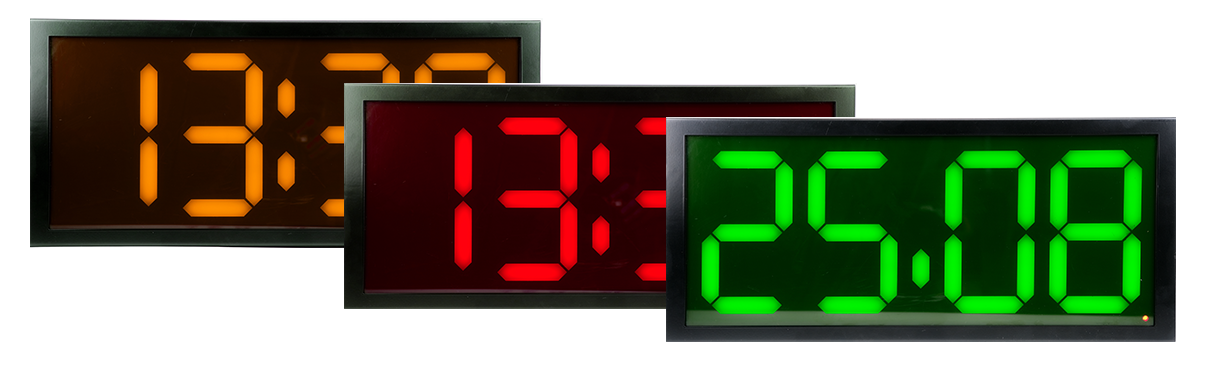

Digital Clocks

Usage:
  • corridors of office and educational premises, factory shops, industrial warehouses, gyms, halls, large offices (possible output of the current temperature, humidity and date)
Name
Size
Model L (version in a metal case)
1100х500х60 мм
Model L (wooden version)
1120х520х80 мм
Model XL (version in a plastic case)
900х900х90 мм
*Data are for single-sided clocks.
